So, urethane casting vs injection molding—big decision, right? Each method shapes plastic parts in its own way. And trust me, the difference matters. Cost, material properties, production efficiency—it all comes into play.
Urethane casting is a solid option for low-volume production, custom designs, or when upfront costs need to stay low. On the other hand, injection molding is all about precision and strength. It creates durable, repeatable parts, making it ideal for mass production.
Thus, vacuum casting vs injection molding: each method has its place. It all eventually depends on your needs!

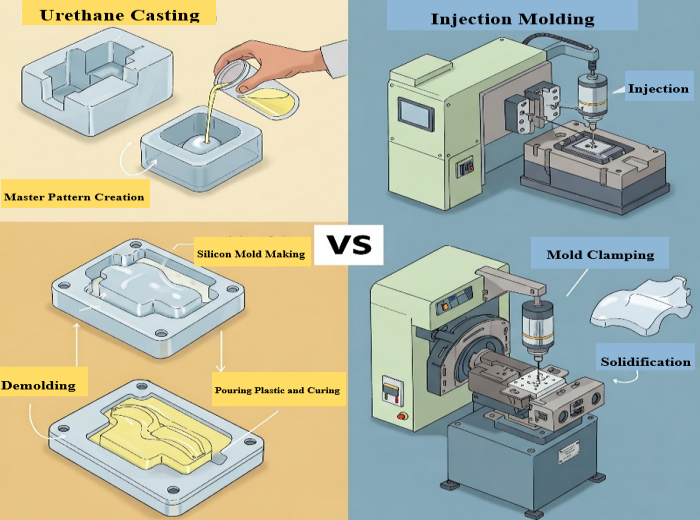

1.1 What is injection molding vs vacuum casting?
Both urethane casting vs injection molding are go-to methods for making plastic parts. But, they’re not the same. Each has its own strengths, depending on how many parts you need, your budget, and the kind of material you’re working with. Picking the right one? It’s all about understanding how they work and what fits your project best.
1.1.1 Urethane Casting Process
Urethane casting is a go-to when you need small batches of plastic-like parts. It’s fast and precise. It’s a pretty straightforward process. First, a master pattern is made, usually with CNC machining or 3D printing. Then, it’s covered in liquid silicone. Once that hardens? Boom—you’ve got a flexible mold. This mold is used to cast urethane-based resins, creating detailed prototypes or custom parts without the crazy costs of metal tooling.
It’s a favorite for product prototyping, small-batch production, and anything needing flexible materials. Think medical devices, automotive parts, and consumer electronics, custom enclosures, rubber-like pieces, even medical wearables. But here’s the catch: silicone molds don’t last forever. They start wearing out after 25–50 uses, so urethane casting isn’t ideal for mass production.
1.1.2 Injection Molding Process
Now, injection molding, that’s a whole different game. This method is built for mass production. We’re talking thousands to millions of identical plastic parts, each one strong, durable, and precise. How does it work? Simple. Thermoplastic materials like ABS, Polycarbonate, Nylon, and PP are melted down and injected into rigid metal molds under high pressure. Once cooled, the part solidifies, pops out, and the cycle repeats. Over and over.
Industries that need high-strength, bulk production—automotive, aerospace, consumer electronics—swear by injection molding vs vacuum casting. It’s not the cheapest to set up (those metal molds don’t come cheap), but once production scales up? The per-unit cost drops dramatically. That’s why it’s the go-to for cost-efficient, large-scale manufacturing. If precision and bulk production are what you’re after, GS Proto’s injection molding services offer customizable solutions for all sorts of industries.
For a detailed comparison of material properties and applications, check out this guide on industrial plastics—it’s a solid resource for understanding the difference between injection molding and vacuum casting projects’ thermoplastic selection.
1.2 Key Difference Between Injection Molding and Vacuum Casting
Choosing between vacuum casting vs injection molding? It all comes down to production scale, budget, and part design. One’s great for prototyping and low-volume runs. The other? Perfect for mass production.
Here’s a side-by-side comparison of vacuum casting vs injection molding pros and cons:
| Feature | Urethane Casting | Injection Molding |
| Production Volume | Low to medium (~10-100 parts) – best for prototyping & small-batch production | High (1,000+ parts) – ideal for mass production |
| Material Options | Urethane-based resins – great for flexible, rubber-like, or rigid parts | Thermoplastics (ABS, Nylon, PP, etc.) – strong, durable, and heat-resistant |
| Tooling Cost | Low – uses silicone molds that are affordable & quick to produce | High – requires metal molds but lasts for millions of cycles |
| Lead Time | Short (1–2 weeks) – fast mold production, perfect for quick iterations | Long (4–8 weeks) – mold fabrication takes time but enables high-speed production |
| Part Durability | Good detail & flexibility, but less durable for long-term use | High strength & impact resistance – best for automotive & aerospace industries |
| Cost per Part | Higher for large runs due to mold wear and shorter lifespan | Lower for mass production – cost drops as volume increases |
| Parts Complexity | Great for intricate designs with fine details and undercuts | Handles simple to complex designs, but some features may need extra tooling |
1.3 When to Choose Urethane Casting?
Need custom parts, quick prototypes, or flexible designs? Urethane casting is a solid choice. It’s cost-effective for low-volume runs, lets you experiment with different materials, and skips the high price of metal molds. Fast, flexible, and precise.
But is it the right fit for YOUR project? Let’s break it down.
1.3.1 Best Uses and Limitations of Urethane Casting
| Feature | Urethane Casting – Best For | Limitations |
| Rapid Prototyping | Quick, affordable iterations before mass production. | Not suited for mass production due to mold wear. |
| Small-Batch Production | Custom or limited-edition products (~10–100 parts). | Per-part costs rise for higher volumes. |
| Material Flexibility | Soft-touch, rubber-like, or transparent parts. | Limited to urethane-based resins. |
| Fast Turnaround | Short lead times (1–2 weeks). | Slower than injection molding for large orders. |
| Tooling Cost | Low-cost silicone molds for temporary use. | Molds degrade after 25–50 uses. |
So, if you want a cost-effective way to produce small batches? Vacuum casting might be just what you need.
1.4 When to Choose Injection Molding?
Need thousands—or even millions—of identical, high-precision plastic parts? Injection molding is your guy. Fast. Efficient. Cost-effective when you’re scaling up. That’s why industries like automotive, aerospace, and medical devices swear by it. They need parts that last. Parts that fit perfectly every single time.
But hold on. Is injection molding always the smartest choice? Let’s break it down.
1.4.1 Best Uses and Limitations of Injection Molding
| Feature | Best For | Limitations |
| Mass Production | Cost-effective for 1,000+ parts—lower per-unit cost. | High initial tooling costs ($5,000–$100,000+). |
| High-Strength Components | Perfect for durable, heat-resistant parts in automotive, aerospace, and industrial applications. | Less material flexibility—can’t match the rubber-like feel of urethane casting. |
| Precision & Repeatability | Tight tolerances (±0.005 inches or better)—ideal for medical devices, consumer electronics, and complex geometries. | Design changes are expensive—modifying metal molds takes time and money. |
| Material Versatility | Works with a wide range of thermoplastics (ABS, Nylon, Polycarbonate, PP). | Longer lead times (4–8 weeks) for mold creation. |
| Scalability | Molds last for millions of cycles—ideal for high-volume production. | Not suitable for rapid prototyping—urethane casting is a faster alternative. |
Hence, if your project needs are about mass production, Injection molding could help cut costs over time.
1.5 Cost Comparison: Urethane Casting vs. Injection
Molding
Money matters. A lot. Whether you’re just testing the waters with a small prototype batch or diving straight into mass production, cost isn’t something you can ignore. And here’s the thing—urethane casting vs injection molding? Totally different ball game when it comes to pricing. If you don’t get the cost breakdown right, you might end up with a budget surprise you didn’t sign up for. Let’s make sure that doesn’t happen.
1.5.1 Cost Breakdown
| Cost Factor | Urethane Casting | Injection Molding |
| Tooling Cost | ~$500–$2,000 | ~$5,000–$50,000+ |
| Cost per Part (Low Volume) | ~$20–$100 | ~$2–$10 |
| Cost per Part (High Volume) | ~$10–$50 | <$1 |
| Lead Time | 1–2 weeks | 4–8 weeks |
| Break-even Point | ~100 parts | ~1,000+ parts |
You can learn more about strategic cost and sustainability through this research paper on cost and sustainability in additive manufacturing to ensure that you invest in a method that not only cuts costs but also aligns with green initiatives.
Ah, still confused? No worries— you are welcome to contact us for a detailed quote. Our professional engineers are here to help you analyze the best solution for your project.
1.6 Real-World Applications of Urethane Casting vs Injection Molding
Choosing between injection molding vs vacuum casting? It depends on your needs. And where the parts will be used.
Some industries need flexibility. Fast prototypes. Small production runs. That’s where urethane casting shines. Others require precision. Large-scale manufacturing. High consistency. Injection molding is the go-to.
Let’s break it down. Different industries. Different demands. But both processes are essential.
1.6.1 Urethane Casting Applications
Urethane casting isn’t just another manufacturing process. It’s a game-changer. Fast. Flexible. Precise. And way more affordable than injection molding.
Think about it. Startups testing new ideas? Medical innovators refining designs? High-end brands perfecting details before mass production? Urethane casting fits right in.
- Startups & Product Development: Got a great idea but not ready to spend thousands on tooling? Urethane casting lets you test, tweak, and refine before diving into full-scale injection molding. A lifesaver for wearable tech companies perfecting ergonomics. To streamline this journey, our NPI Process ensures a seamless shift from prototype to production.
- Medical Device Housings & Wearables: Ever wonder how diagnostic tools or prosthetic parts get tested before mass production? Urethane casting makes biocompatible, soft-touch, and impact-resistant enclosures possible. Think surgical grips, prosthetics, and wearable medical devices.
- Limited-Edition Consumer Products: Premium audio brands, luxury electronics, and auto accessory makers love urethane casting. Why? Small-batch, high-quality production without crazy upfront costs. Custom speaker casings, headphone housings, and limited-edition gadgets? All possible.
This process makes ideas real. Fast. Cost-effective. High-quality
1.6.2 Injection Molding Applications
Injection molding is the backbone of large-scale manufacturing. Strong. Consistent. Scalable. If a product needs durability and mass production efficiency, this is the go-to process. From automotive to aerospace, injection molding delivers precision at scale.
- Automotive Components: Ever noticed your car’s dashboard? The air vents? Even those soft-touch steering wheel buttons? That’s injection molding. It’s what makes high-precision, durable automotive parts possible. Many brands use it to combine rigid plastics with softer, ergonomic materials
- Consumer Electronics: Your smartphone case. Gaming controller. Laptop shell. All injection molded for strength, heat resistance, and sleek design. Some brands take it up a notch with insert molding—embedding metal inside plastic for extra durability.
- Industrial & Aerospace Equipment: Satellites. Heavy-duty machinery. These industries need materials that can handle extreme conditions. That’s where high-performance thermoplastics like PEEK and Ultem come in. Think lightweight air ducts, brackets, and structural supports. Strong yet light—perfect for high-performance applications.
Injection molding isn’t just about making parts —it’s about making them better, faster, and more consistent every time.

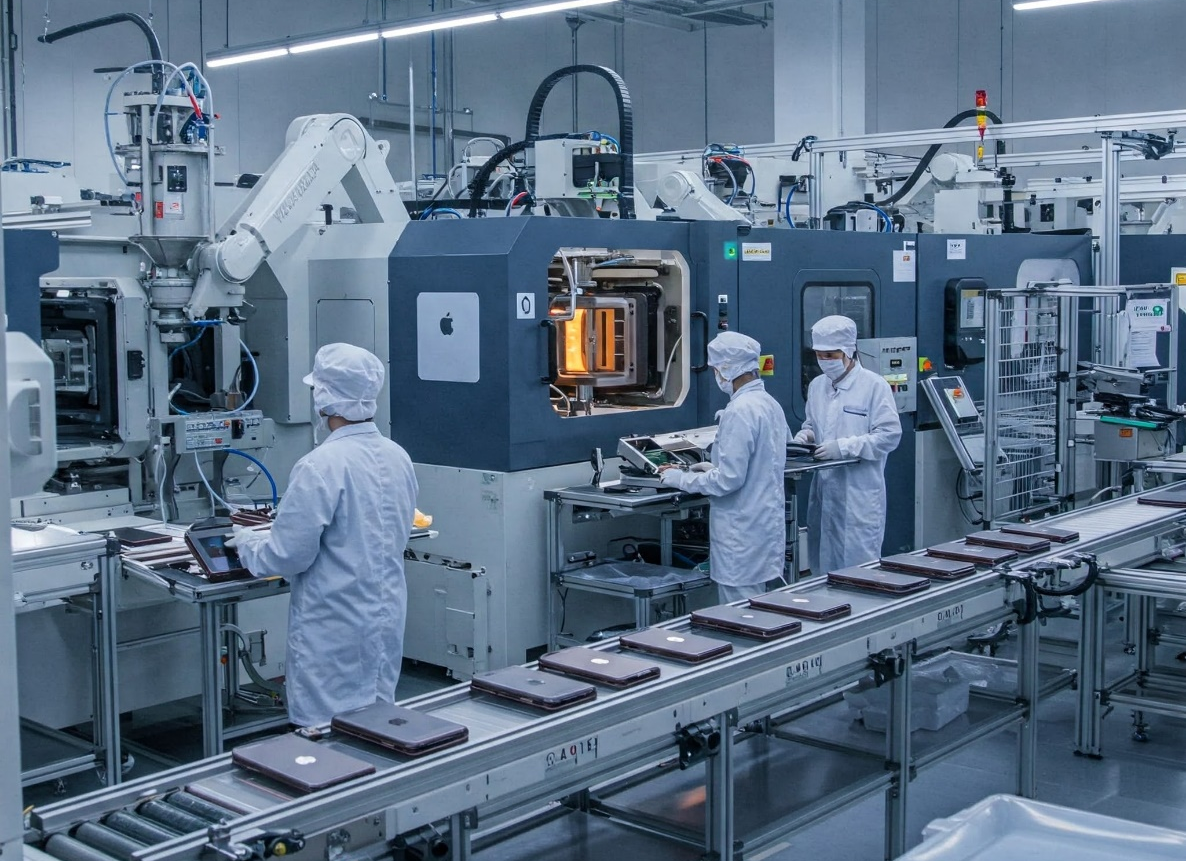

1.6.3 Real-World Example: Apple’s Use of Injection Molding
Apple doesn’t just manufacture products. It perfects them. Precision. Consistency. Scale. Injection molding is at the core of Apple’s production strategy, shaping everything from iPhones to AirPods with unmatched quality.
Why Does Apple Prefer Injection Molding?
High-Volume Production → Millions of parts. Micron-level precision. Every device meets Apple’s strict quality benchmarks. No room for flaws.
Material Strength & Durability → Apple’s not using just any plastic. Think polycarbonate, glass-filled nylon, and high-performance thermoplastics. Tough. Heat-resistant. Built to last.
Cost Efficiency → Tooling costs? High. But once that’s done, per-unit costs drop drastically. Perfect for mass production at scale.
Sustainability Initiatives → Apple’s pushing for greener tech. Recycled thermoplastics are replacing conventional plastics, with less waste, same premium quality.

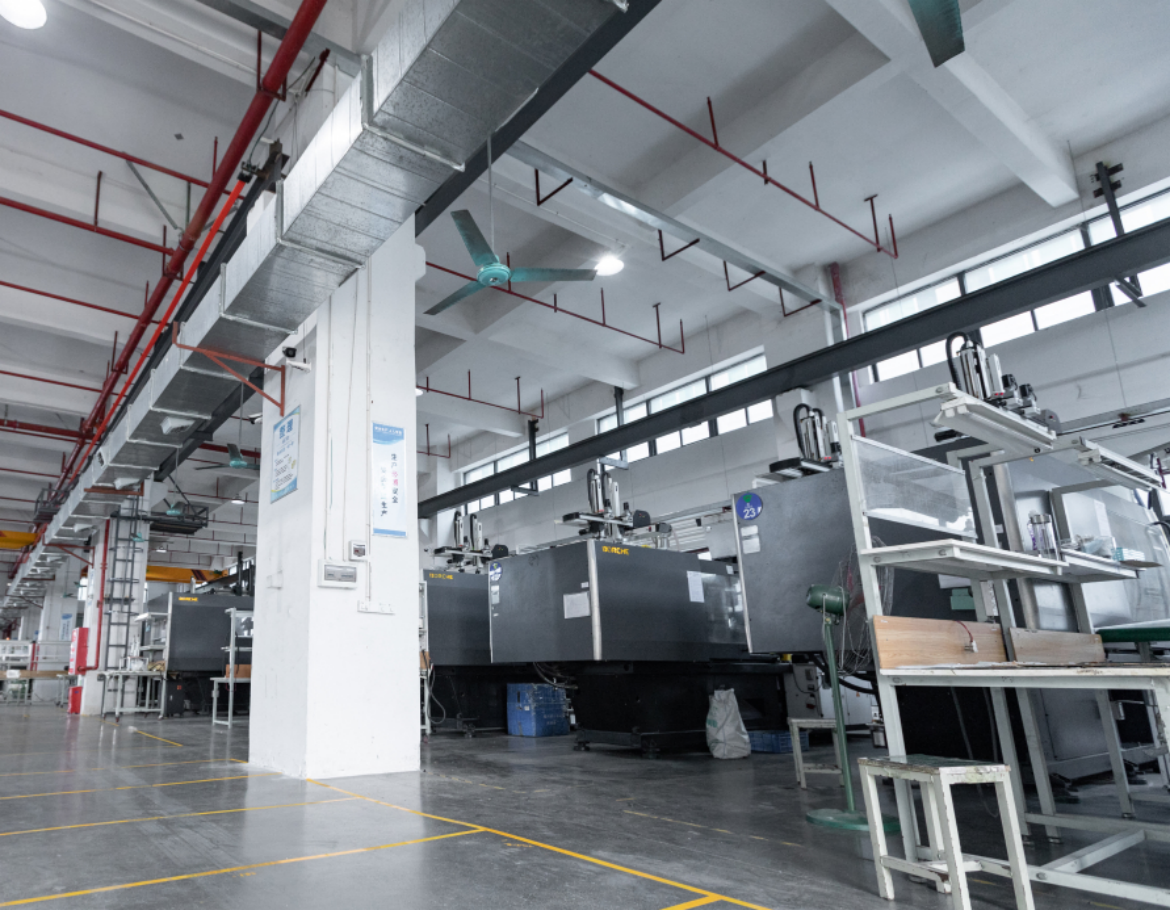

1.7 Choosing the Right Partner – Get High-Quality Prototypes & Production Parts with GS Proto
Picking the right manufacturing partner? That’s where it all starts. Precision. Durability. Cost-efficiency. You need a team that gets it right the first time.
| Why GS Proto? | Fact-Based Advantage |
| Expertise in Urethane Casting & Injection Molding | 20+ years of industry experience, delivering 1000s of projects annually. |
| High-Precision Manufacturing | Tolerances as tight as ±0.05 mm, ensuring accuracy for intricate designs. |
| Cost-Effective Solutions | Up to 50% lower tooling costs compared to traditional methods. |
| Fast Turnaround Times | Delivery in as fast as 3 days, reducing time-to-market. |
| Scalable Production | Handles orders from 1 to 100,000+ parts, supporting both prototyping and mass production. |
From small-batch prototypes to high-volume production, we make sure every part meets the mark, without breaking the bank.
Ready to bring your design to life? → Request a free quote now!
1.8 FAQs: Urethane Casting vs Injection Molding
1.8.1 Is urethane casting suitable for outdoor applications?
Urethane casting? Great for prototypes and short-term use, but not the best for long stretches outdoors. Sun, rain, and extreme temperatures can wear it down over time. Need something tougher? Injection molding with UV-resistant thermoplastics like ABS or polycarbonate holds up way better, stronger, more weatherproof, and built to last.
1.8.2 How does the environmental impact of urethane casting vs injection molding processes compare?
Injection molding takes the lead in sustainability for mass production. Those metal molds? They last millions of cycles, cutting down on waste over time. Urethane casting, though? Not so much. Silicone molds wear out fast, and many casted parts are single-use, making it a less eco-friendly choice in the long run.
1.8.3 What is the typical lifespan of a silicone mold in urethane casting?
Silicone molds used in urethane casting typically last for 25–50 parts before degrading, depending on material choice and complexity.
1.8.4 Does urethane casting support over-molding?
Not effectively. Urethane casting is best for single-material parts, whereas injection molding allows over-molding, which integrates multiple materials (e.g., soft grips on rigid components).
1.8.5 Which process allows for the most intricate details?
Urethane casting can replicate very fine details, but injection molding ensures precision and repeatability at scale, especially for complex geometries requiring tight tolerances.
1.8.6 What’s the best choice for limited-edition or custom product manufacturing?
Urethane casting is ideal for limited editions and custom products because it allows for easy modifications without high tooling costs. Injection molding is better for mass production.
