1.1 Introduction to 3D Printing File Types
Starting a 3D print? Don’t skip this. Pick the wrong 3D printing file type (STL, OBJ, 3MF), and your masterpiece becomes plastic spaghetti. I’ve watched smooth prototypes turn into warped, jagged disasters—all because someone grabbed the wrong file type for the 3D printer.
Think of these formats as your printer’s recipe. Mess up the ingredients, and your print fails. Want crisp details instead of melted blobs? Choose the best file type for 3D printing from the start. It’s that simple.
1.2 What Are 3D Printing File Types?
Let’s talk about 3D printing’s heroes, the file types. Actually, these digital files like STL, OBJ, or 3MF are the instruction manual for your printer. They include all the directions required to transform your computer design into a physical item. Consider them as the DNA of your project, as they affect everything in your final print.
1.2.1 Key Components of 3D Printing File Types
Generally, a file type for 3d printing consists of three primary parts:
| Component | Description |
| Geometry | Referring to the form and structure of the object |
| Texture | Texture adds visual elements to an object, such as smooth surfaces or patterns. |
| Material Data | Describing the kind of material that was utilized, such as resins, metals, or polymers. |
For more details about how different file types for 3d printing effect the objects being printed out, check out this guide on 3D printing file formats.
1.3 Top 10 3D Printing File Types You Need to Know
You might ask, “What are the most common 3d printing file formats”? Navigating the landscape of 3D printer file types can feel overwhelming, but understanding each format’s strengths is mandatory for professional results. In 2025, we’re seeing clear trends toward more enhanced and sophisticated formats that preserve design intent while also maintaining compatibility. Let’s break down all 10 major options with new insights.
1.3.1 STL (Stereolithography)
The OG Format: The Lego of 3D printing file types – simple triangular blocks that every printer understands. Perfect for your prototype via FDM printing, but struggles with organic curves.
| Advantages | Disadvantages |
| Zero compatibility issues | No colors/textures |
| Lightning-fast slicing | “Pixelated” curved surfaces |
| Featherlight file sizes | Single-material only |
How Do You Make & Create STL Files for 3D Printing?
1.3.2 OBJ (Wavefront Object)
The Artist’s Choice: Stores textures and colors like a digital mannequin. Loved for 3D scanned models, but large files negatively affect the processing speed
| Advantages | Disadvantages |
| Photo-realistic renders | Heavy file sizes |
| Smoothly curved surfaces | Limited printer support |
| Works with scanning apps | UV mapping headaches |
1.3.3 3MF (3D Manufacturing Format)
The Future-Proof File: Think of it as a ZIP for 3D printing – packs models, colors, and settings together. Microsoft’s answer to STL’s limitations.
| Advantages | Disadvantages |
| All-in-one convenience | Newer printers only |
| Smaller than OBJ | Requires latest software |
| Built for multi-material | Overkill for drafts |
1.3.4 AMF (Additive Manufacturing File)
The Engineer’s Secret: STL 2.0 with XML superpowers for lattices/gradients. Used in NASA projects but rare in hobbyist shops.
| Advantages | Disadvantages |
| Handles complex geometries | Niche compatibility |
| Human-readable code | Bulky file sizes |
| Ideal for weight reduction | CAD support limited |
1.3.5 G-Code
Printer Whisperer: Not a model file, but the step-by-step recipe your printer follows. Modern AI slicers like Cura optimize it automatically.
| Advantages | Disadvantages |
| Direct machine control | Printer-specific |
| AI-optimized paths | Can’t edit design |
| Fewer failed prints | Slicing expertise needed |
1.3.6 PLY (Polygon File Format)
The Scanner’s BFF: Captures every detail from 3D scans – including textures. Files balloon quickly, but are essential for archival digitization.
| Advantages | Disadvantages |
| Perfect scan accuracy | Massive storage needs |
| Retains color data | Not for functional parts |
| Works with photogrammetry | Hard to edit |
1.3.7 VRML (Virtual Reality Modeling Language)
The Retro Web-Based 3D File Format: Originally built for virtual environments, VRML once powered early VR/AR and web-based simulations. Though obsolete for modern 3D printing, it still appears in legacy educational platforms and research tools.
| Advantages | Disadvantages |
| Tiny VR-friendly files | No material data |
| Easy to create | Dead for industrial use |
| Legacy system support | Poor printer compatibility |
1.3.8 STEP (ISO 10303)
The Engineer’s Gold Standard: Keeps CAD features editable. It is crucial for automotive redesigns. Heavy but indispensable.
| Advantages | Disadvantages |
| Parametric editing | Large files |
| Industry standard | Needs CAD software |
| 60% faster revisions | Overkill for artists |
For high-precision engineering parts, combining STEP files with CNC machining services ensures ultimate dimensional accuracy.
1.3.9 GES (Initial Graphics Exchange)
The Legacy Bridge: Pre-STEP format still used in 38% of aerospace workflows. Loses features but handles complex surfaces.
| Advantages | Disadvantages |
| Cross-CAD compatibility | Being phased out |
| Handles NURBS surfaces | Dumb geometry only |
| Aerospace legacy support | Limited slicer integration |
1.3.10 Native CAD Formats (.SLDPRT, .F3D)
The Purest Form: When you print directly from SolidWorks or Fusion 360, zero data is lost. But you’re locked into that ecosystem.
| Advantages | Disadvantages |
| Perfect CAD accuracy | Software-locked |
| Full parametric control | Industrial printers only |
| 25% faster workflows | No cross-platform sharing |
2025 File Format Selection Guide
| Consideration | Recommended Formats |
| Speed/Simplicity | STL, OBJ |
| Multi-Material | 3MF, AMF |
| Engineering Precision | STEP, Native CAD |
| 3D Scanning | PLY |
| Legacy Systems | IGES, VRML |
Fun Facts:
- AI-Optimized G-code: Manual tuning? Slashed by 80%. Welcome to the future.
- Blockchain-Verified Files: IP protection? Now it’s built into 3D printing.
1.4 Classification of Common 3D Printing File Types
| Category | Format | Role in Workflow | Description | Key Traits |
| Geometric-Only | STL | Slicing | Triangle mesh for universal printer compatibility | No colors/textures; small files; distorts curves |
| OBJ | Slicing/Visualization | Polygon-based with texture support | Larger files than STL; preserves surfaces; needs UV mapping | |
| PLY | 3D Scanning | Stores scanned geometry and color data | Massive files; ideal for photogrammetry | |
| Feature-Rich | 3MF | End-to-end production | Bundles geometry, materials, and settings in one file | Compressed XML; industry-backed; replaces STL for pros |
| AMF | Industrial applications | STL’s XML-based successor for complex structures | Human-readable; supports lattices; niche adoption | |
| CAD-Native | STEP | CAD-to-print transfers | Maintains parametric CAD data (e.g., editable sketches) | Large files; industry standard; 60% faster redesigns vs. STL |
| IGES | Legacy engineering | Surface data exchange with Pre-STEP format | Loses parametric data; still used in aerospace | |
| .SLDPRT | Native CAD design | SolidWorks’ proprietary format with full feature history | Software-locked; perfect accuracy; not shareable | |
| Machine Code | G-Code | Printer execution | Direct instructions for specific 3D printers | AI-optimizable; reduces failures; not editable |
| .x3g | MakerBot printing | Compiled G-code variant for MakerBot machines | Proprietary; requires MakerBot slicer |
Alt Text: “Table of common 3D printing file types with key traits and roles in workflows.”
These formats are particularly valuable when working with our industrial-grade 3D printing solutions, where dimensional accuracy and editability are paramount.
1.5 How to Create 3D Printing Files for Your Project
Creating 3D printing file types isn’t just about design—it’s about ensuring flawless prints. In 2025, smarter tools will make the process easier than ever. Whether you’re a professional or hobbyist, these essential steps will help you optimize your 3D printer file types for the best results.
Modern CAD software like Fusion 360 and SolidWorks now includes advanced optimization tools. To maximize quality, keep these critical factors in mind:
- Wall Thickness: Maintain at least 1mm for FDM prints.
- Overhang Angles: Keep below 45° to minimize the need for supports.
- File Export Settings: Always use “high resolution” when saving as an STL file.
1.5.1 3D Scanning (For Physical Replication)
Photogrammetry apps like RealityCapture now produce print-ready files with:
- Automatic mesh repair
- Built-in scaling tools
- Texture preservation (when using OBJ/3MF formats)
If you’re curious about how 3D printing is applied across different industries, check out these Top 10 3D Printing Applications and Examples for 2025.
1.5.2 Online Model Repositories
Platforms like Thingiverse and Printables offer pre-made models, but watch for:
- Non-manifold edges
- Incorrect scaling
- Missing texture files
Pro Tip: Always inspect downloaded models in Netfabb or Meshmixer before printing.

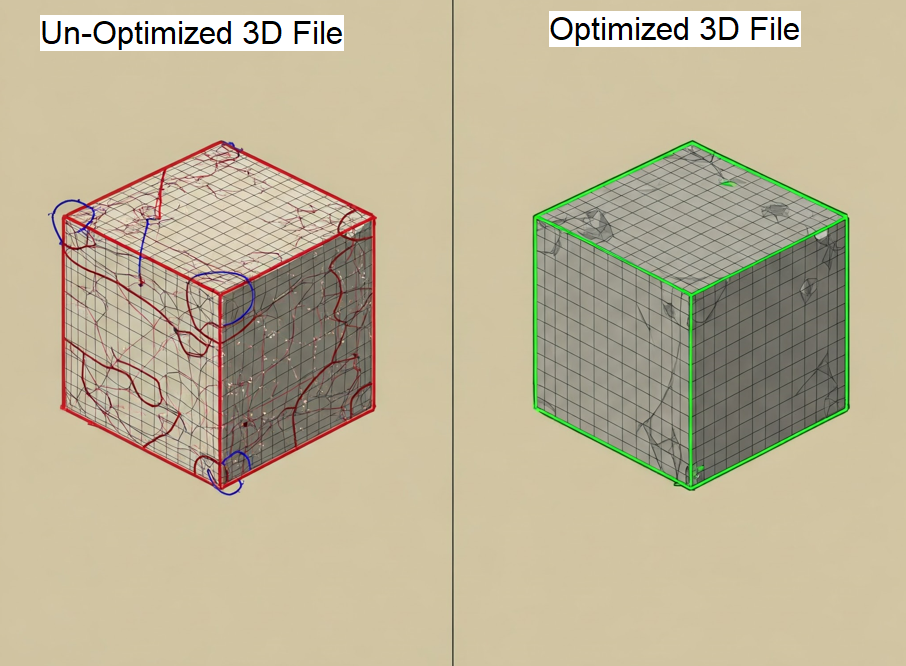

1.5.3 Optimization Checklist Before Printing
Before hitting “Print,” follow this checklist to optimize your 3D printing file types
- Mesh Repair(Fix holes/non-manifold edges)
- Scale Verification(Confirm dimensions in mm/inches)
- Support Strategy(Auto or custom supports)
- File Format Selection(Match to printer capabilities)
- Slicer Settings(Layer height, infill, speeds)
We recommend these specific tolerances for optimal 3D prints:
| Feature | Recommended Tolerance |
| Holes | +0.2mm oversized |
| Pegs | -0.1mm undersize |
| Moving Parts | 0.3mm clearance |

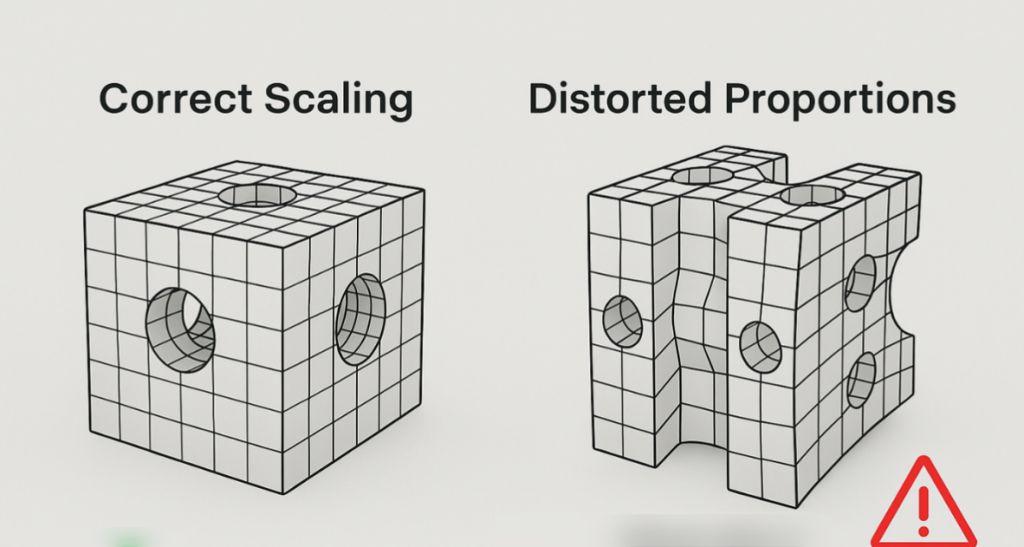

1.6 Precision Resizing for Flawless 3D Prints
Scaling isn’t just about changing size; it impacts the best file type for 3D printing and overall print quality. Whether you’re fitting a model to a specific build volume or adjusting tolerances for mechanical parts, proper resizing ensures dimensional accuracy without compromising design integrity.
1.6.1 Why Resizing Matters
- Printer Compatibility– Desktop and industrial printers have different size constraints.
- Functional Fit– Mechanical parts like gears and hinges require precise tolerances.
- Material Efficiency– Proper scaling can reduce print time by up to 40%.
1.6.2 Step-by-Step Resizing Guide
- Unit Verification
- Always confirm your file’s original units (mm/inches) before scaling
- Proportional Scaling
- MeshmixerMethod:
- Import your model
- Select “Edit” → “Transform”
- Enable “Uniform Scaling” to maintain proportions
- Input exact dimensions or percentage scaling
- Non-Uniform Adjustments(When needed)
- For architectural models needing only Z-axis adjustment
- Tolerance Compensation
- Increase hole sizes by 0.2mm to account for printer inaccuracy
- Our design guidelines provide industry-specific scaling factors
- Final Checks
- Verify wall thickness meets your printer’s minimum requirements
- Check scaling-induced defects
1.6.3 Common Resizing Pitfalls to Avoid
- Over-Shrinking– Small features can disappear if scaled down too much.
- Mesh Breaks– Scaling errors can create non-manifold edges.
- Texture Distortion– OBJ & 3MF users should verify UV mapping to prevent stretching.
1.7 Upload Your 3D Files and Get A Quote
Now that you’ve mastered file formats and preparation, it’s time to transform your 3D models into tangible objects. Bringing your 3D model to life has never been easier.
1.7.1 How Our Quoting System Works
- Upload Your Files
- We accept all major 3D printing file types, such as STL, OBJ, STEP, IGES, 3MF, and more.
- Receive a DFM Review
- Our engineering team performs a detailed DFM (Design for Manufacturability) analysis to enhance printability, improve part quality, and reduce unnecessary production costs. You’ll get expert insights that help refine your design—before it goes into production.
- Confirm a Quote– Once you’re happy with the design, materials, and specs, simply approve the quote to kick off production. Everything’s outlined clearly—no surprises, just streamlined manufacturing.
1.7.2 Why Professionals Choose Our Service
- Fast Turnaround– Parts delivered in as little as 24 hours
- Transparent Pricing– No hidden fees, full cost breakdown.
- Expert Support– Engineers are available to assist with file optimization.
📂 Upload your files today and start printing!
1.8 The Cutting Edge of 3D Printing File Types: 2025 Innovations
Now that you understand the key file types and how to prepare them, it’s worth looking ahead. With the advancement of 3D printing technologies, the file types that support them are evolving too. In 2025, the focus is shifting toward intelligent, secure, and multi-functional formats that go far beyond just geometry and mesh. Thus, this evolution can affect how you choose, edit, and secure your files.
1.8.1 The 3MF Revolution Goes Mainstream
2025’s big news? 3MF is here, and it’s now supported by 78% of industrial 3D printers. Why? Because it combines:
- Geometry + color + material + build instructions
- Multi-material support in a single package
- Embedded slicing profiles for faster machine setup
1.8.2 AI–Supported Format Selection
Then there’s Autodesk’s Project Dreamcatcher. It’s using AI to:
- Recommend the best file type for your model (e.g., STL for mechanical parts, OBJ for visual ones)
- Automatically optimize file topology to reduce print errors
- Create hybrid files (i.e., STL + metadata) that maintain legacy compatibility
It’s cutting file prep time by 65%. Imagine the time saved!
1.8.3 Blockchain-Enabled File Security
With digital manufacturing booming, security is key. That’s where blockchain-enabled 3D printing files come in:
- Encrypted metadata ensures tamper-proof revision histories
- Licensing controls limit how often a file can be printed
- Chain-of-custody logs verify who accessed or modified a file
1.8.4 What This Means for Your Projects
- Faster iterations: Less waiting on file conversions.
- New possibilities: Graded materials and microstructures.
- IP protection: Safe design distribution.
1.9 3D Printing File Types: Your Top Questions Answered
You’ve seen how file types differ, how to prepare and resize them. Still got questions? Here are the most common ones we get, answered with real-world context from earlier in this guide.
1. Is OBJ or STL better for 3D printing?
It depends on your project:
| Criteria | STL | OBJ |
| Detail | Basic geometry only | Supports textures/colors |
| File Size | Small | Larger (but better compression in 2025) |
| Best For | Functional prototypes | Visual models (e.g., architectural renders) |
Pro Tip: For most users, STL is simpler, but OBJ wins for visual fidelity.
2. What file type for 3D printing is the best in 2025?
STL remains the standard, but 3MF is gaining popularity due to:
- Embedded slicing settings
- Multi-material support
- Smaller file sizes than OBJ
3. Can I convert between different 3D printing file types without losing quality?
Yes, but with limitations. Converting from a feature-rich format like STEP to STL often results in a loss of parametric data, textures, and editable features.
4. What’s the safest 3D printing file type for industrial applications?
STEP and SLDPRT files are best for engineering tasks due to their:
- Editable parametric data
- Perfect accuracy
- Compatibility with CAD systems
For production files, 3MF with metadata encryption offers added IP protection.
